Keep your eyes open for the ACS/AMI 2024 Open House! We will have many new laser products on display, including:

Tube Laser
Plate Laser
Sheet Metal Laser
Laser Welders/Cleaners
XPR Precision Plasma
Conventional Plasma
High Pressure Abrasive Waterjet
HVAC Coil Lines

You will not want to miss this opportunity for hands on demonstrations!!!

Stay tuned for dates!

Evolution A Automation

We offer multiple levels of Automation on request Automated production cell with 8 tray tower, with load/unload.

Enclosed Cutting Head which is FDA approved. Max Travel Speed is 1,653 IPM & 1 G acceleration. Max laser capacity is 6,000 Watt. Auto Focus Cutting Head Offered multiple cutting lengths, 21ft, 31ft, 41ft Offered multiple Pipe capacity, 9.4 Inch, 11 Inch, 14 Inch Manual Load Semi Automatic Load Fully Automatic Load Optional Zero Drop…

Evolution RM Rail Mounted

Enclosed Cutting Head which is FDA approved. Max Travel Speed is 1,653 IPM & 1 G acceleration. Max laser capacity is 30,000 Watt. Auto Focus Cutting Head Offered in 8ft wide, 10ft wide and 11ft wide Offered in Lengths of 39ft, 45ft & 52ft Normally sold to Plate Shops, Service Centers, Shipyards Bevel Head Option

Evolution II-R Shuttle

Enclosed Cutting Area is FDA approved. Max Travel Speed is 4,750 IPM & 1.5 G acceleration. Max laser capacity is 6,000 Watt. Auto Focus Cutting Head Offered in a true 5 x 10, 613,520, 819, 826. Max Tube Length is 19.6 Ft Max Tube Dia is 9.44 Inch (Square or Round) Pneumatic Square Chuck 5…

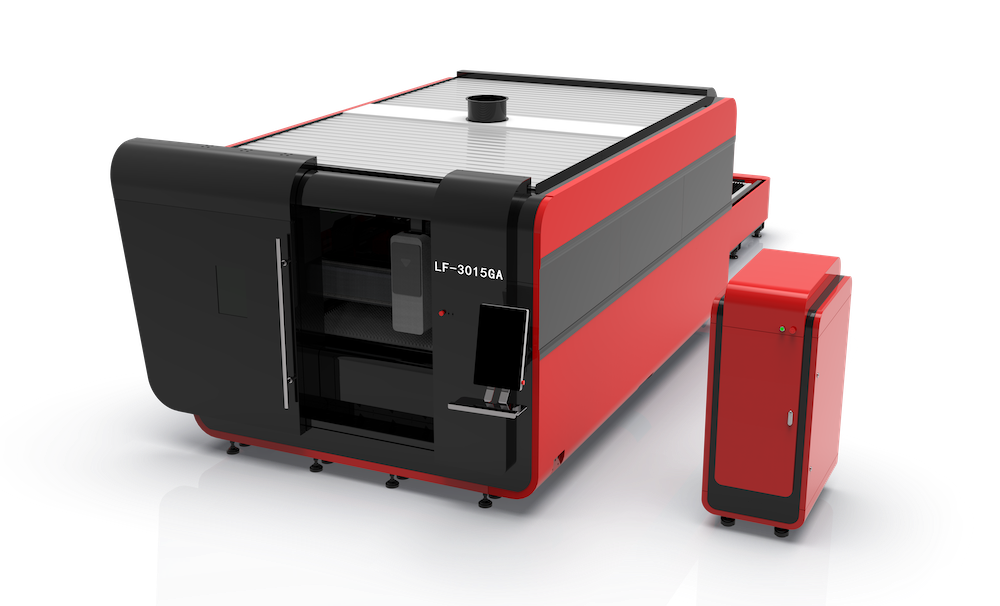

Evolution II – Shuttle

Enclosed Cutting Area is FDA approved Max Travel Speed is GA Version is 4,750 IPM & 1.5 G acceleration. GH Version is 7,870 IPM & 2 G acceleration Max laser capacity is 20,000 Watt. Auto Focus Cutting Head Offered in a true 5 x 10, 613,520, 819, 826,839,939 5 x 10 and 520 Can be…

Evolution SS/SL

Enclosed Cutting Area is FDA approved. Max Travel Speed is 3,937 IPM & 1.2 G acceleration. Max laser capacity is 4000 Watt. Auto Focus Cutting Head Only offered in a true 5 x 10 Fast and easy setup. Cannot be set up with a Coil Feed Fits in tight area where access from the ends…

Evolution III-MC

Moving Cover which is FDA approved. Max Travel Speed is 4,750 IPM & 1.5 G acceleration. 510 is slightly slower just under 4,000 IPM and 1.0 G Max laser capacity is 6000 Watt. Auto Focus Cutting Head Only offered in a true 5 x 10, 5 x 20 & 6 x 13 cutting area. Same…

Evolution I-510

Moving Cover which is FDA approved. Max Travel Speed is 1,574 IPM & .06 G acceleration. Max laser capacity is 3000 Watt. Auto Focus Cutting Head Only offered in a true 5 x 10 cutting area. Very fast and easy setup. Can easily be set up with our standard Laser Coil Feed not requiring the…

Cutter II 510

The Cutter II cutting system was introduced to the market in 2006 as the latest model in the Advance Cutting Systems product line. The Cutter II is a state of the art Computer Numerically Controlled (CNC) Cutting System designed to use a plasma-cutting torch to cut out geometrical shapes and parametrically programmed HVAC (Duct Work)…

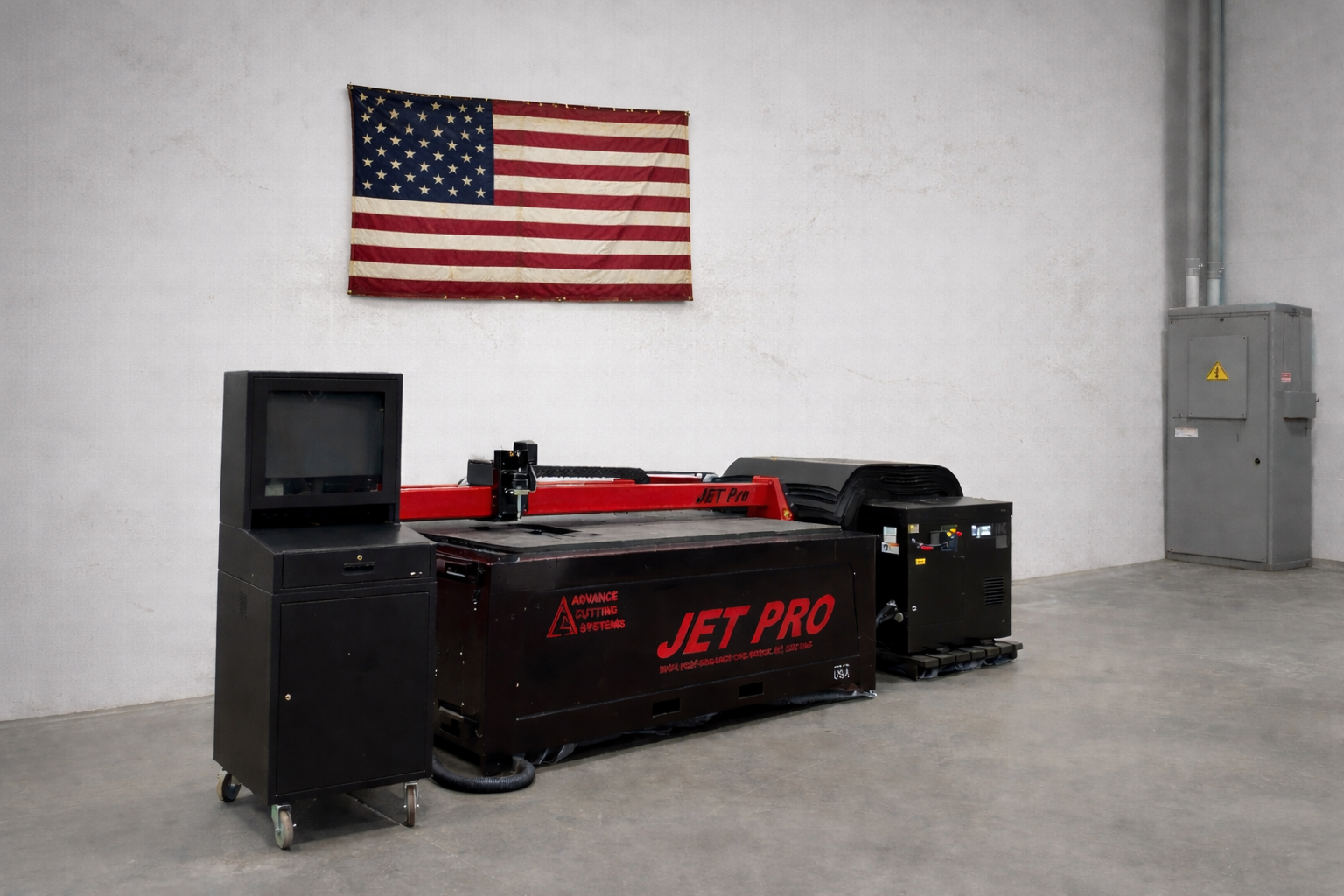

Jet Pro 510 Abrasive

The Advance Cutting Systems Pro Series is the company’s newest value-priced, made in America high performance cutting system, offering fabricators premium features in a package compact enough to fit in small shops. Ruggedly built, the Pro Series has the same reliability and accuracy found with all Advance Cutting Systems products. The Pro Series was developed…

AutoFold AF 516 SEE Left Feed

The original Autofold system is the backbone of the Autofold production due to its design and the use of the best material’s in manufacture ,all Autofold machines run Bosch rexroth hydraulics and are standard on every machine ,we do not charge to upgrade from pneumatic systems and Air is not a requirement on the Autofold.

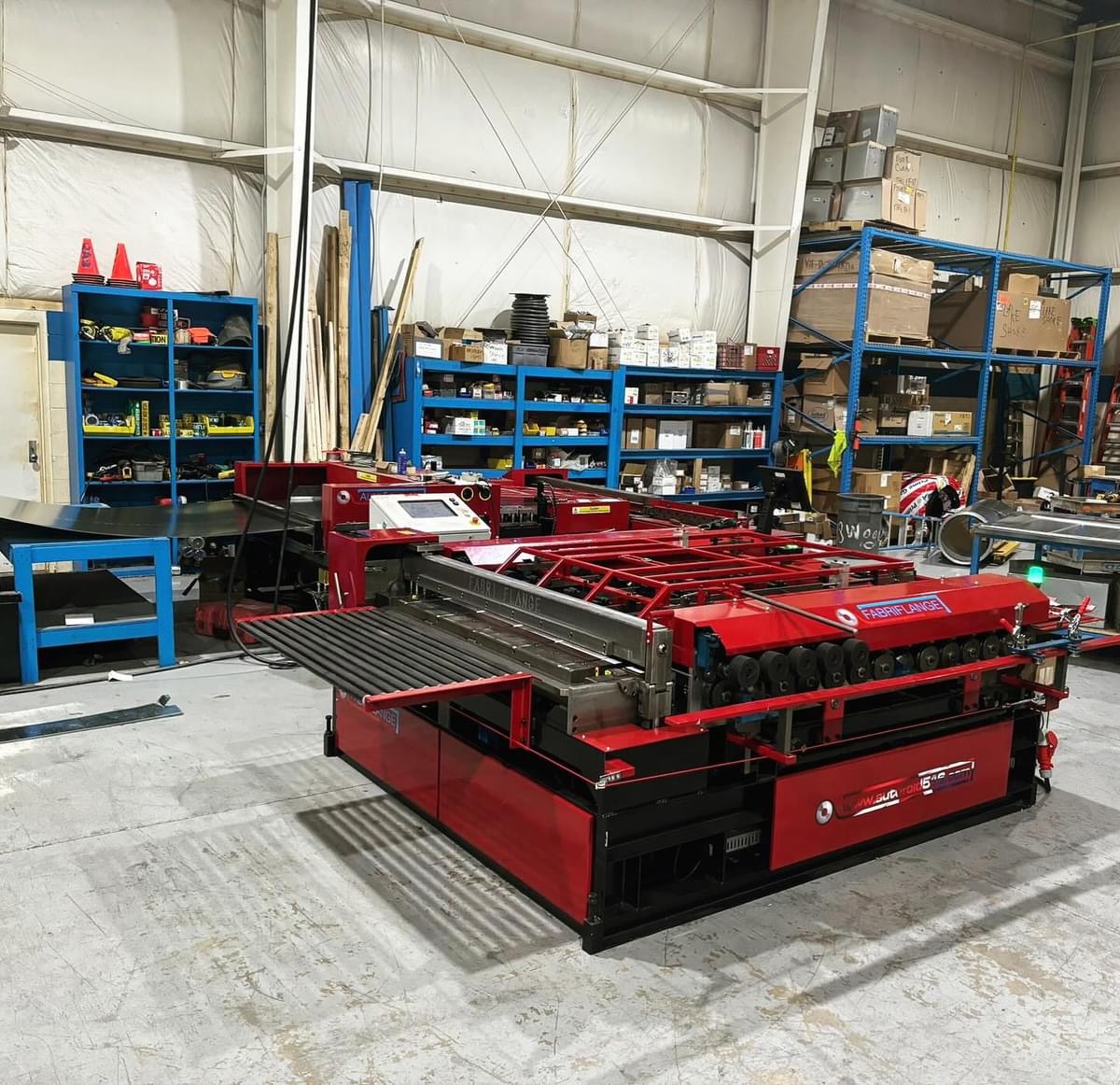

Fabri-Flange

The newly designed Fabri-Flange has been designed to take a flat sheet duct from a Autofold side eject. The unique dual hydraulic control system takes a flat notched sheet with a male and female lock and folds it into a full wrap or “l” shape box whilst automatically forming a roll on flange. This process…

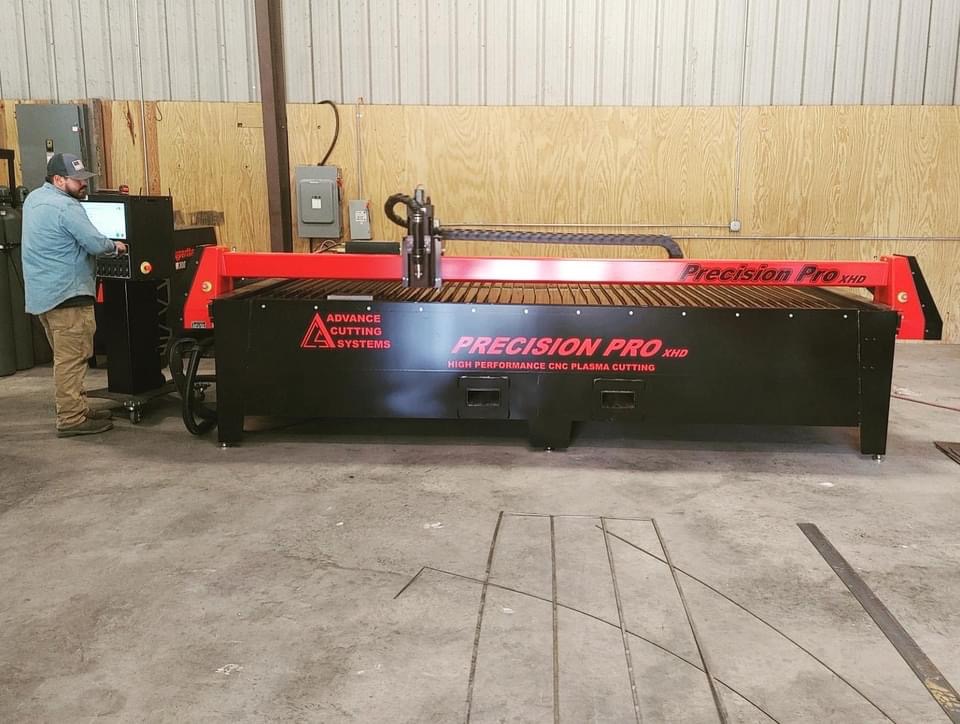

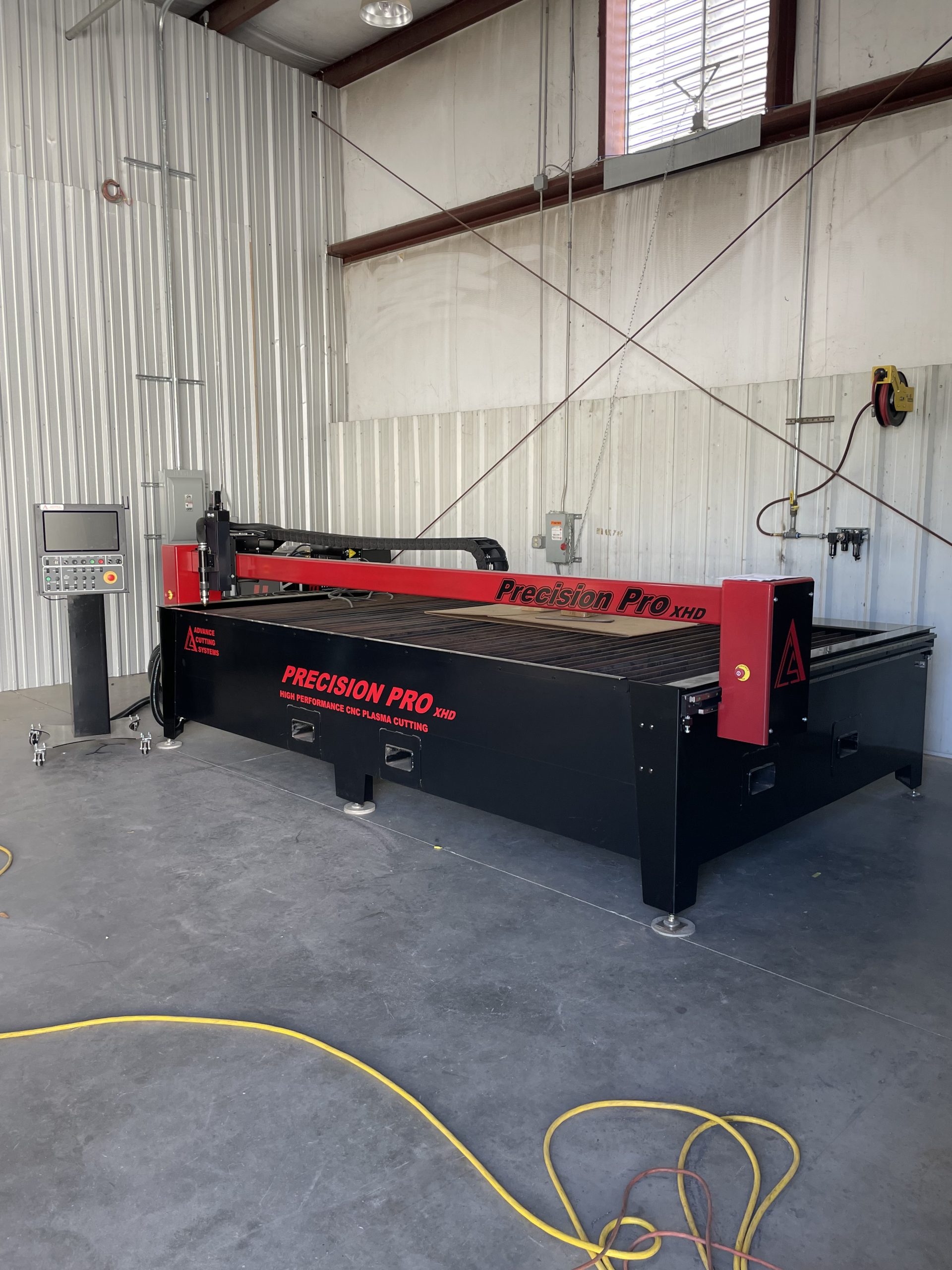

Precision Pro 612 XHD

The Precision Pro 612 XHD offers fabricators premium features in a package compact enough to fit in small shops. Our customers like to use the words, “Built to Last;” the Precision ProXHD has the same reliability and accuracy found with all Advance Cutting Systems products. The Precision ProXHD was developed with the feedback of fabricators…

Roto Pro 510

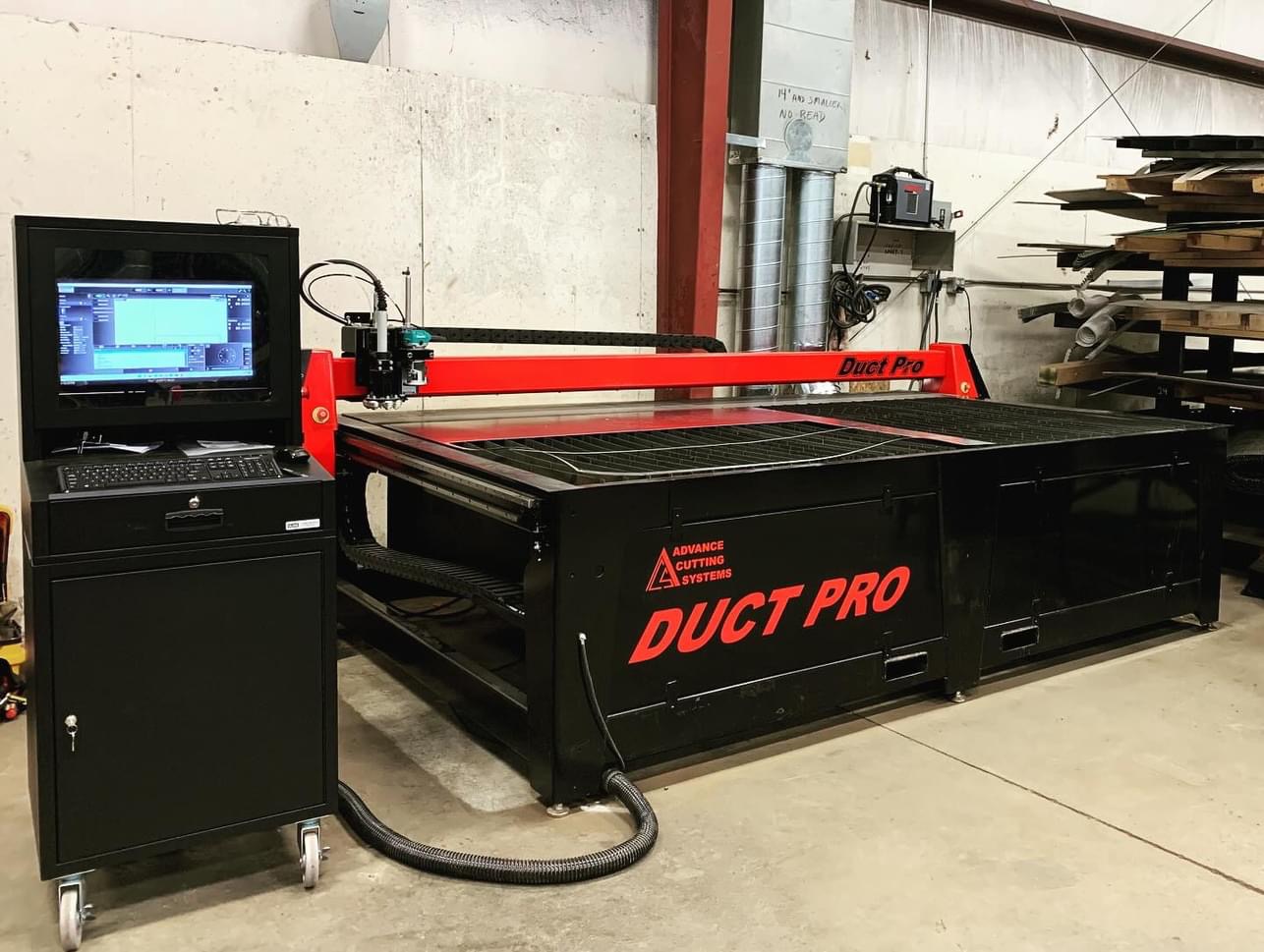

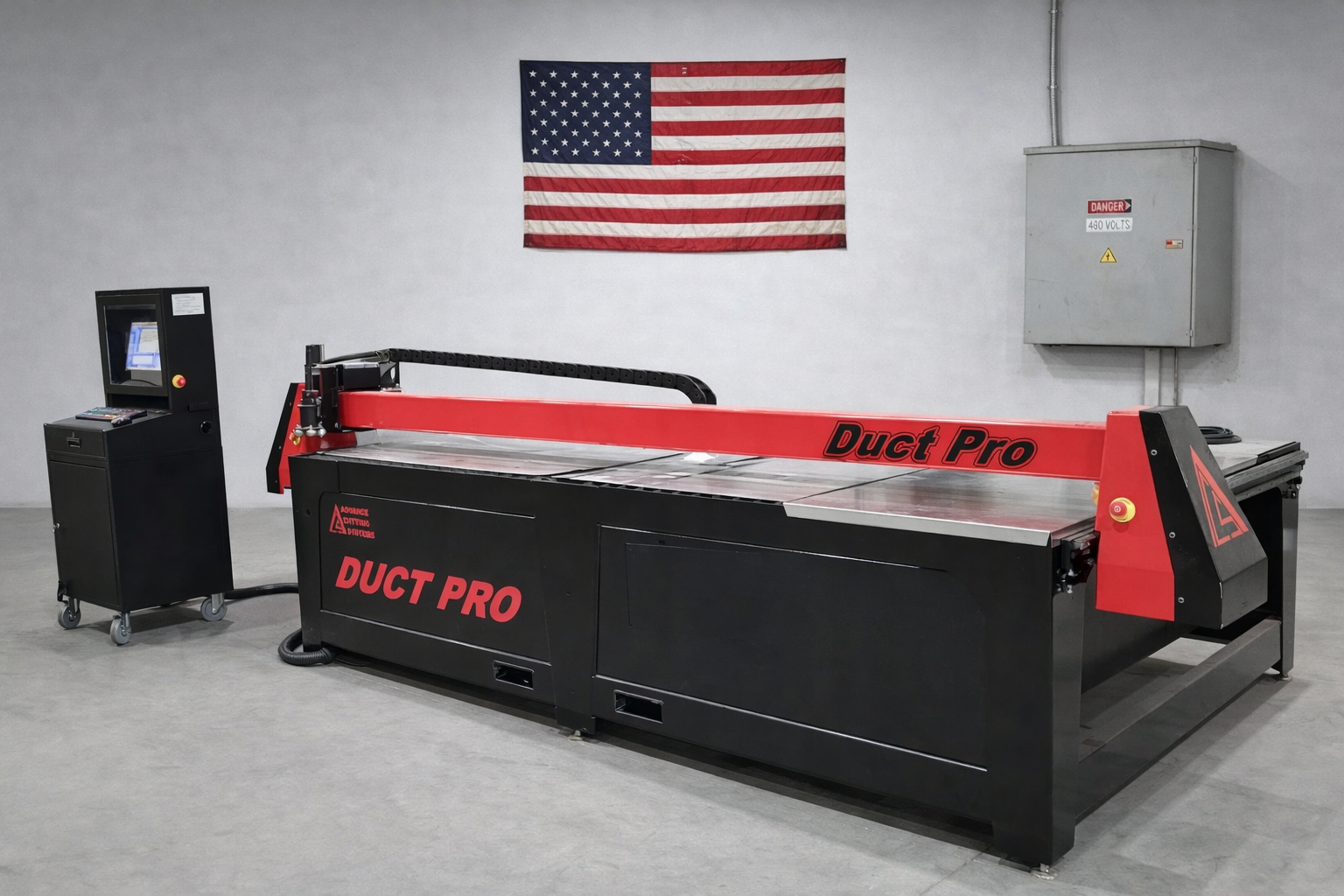

Duct Pro 510

ACS Duct Pro-510 Plasma Cutting System The Advance Cutting Systems Pro Series is the company’s newest value-priced, made in America high performance cutting system, offering fabricators premium features in a package compact enough to fit in small shops. Ruggedly built, the Pro Series has the same reliability and accuracy found with all Advance Cutting Systems…
